LBH Metal Expansion Joints are designed and manufacture as single-, or multiply metal bellows.

Designed for use in any application in sizes from DN40.

Bellows are made in stainless steel, nickel alloys or titanium combined with various flanges and pipe designs.

Design calculations are possible acc. to EJMA, EN and ASME

LBH Standard designs

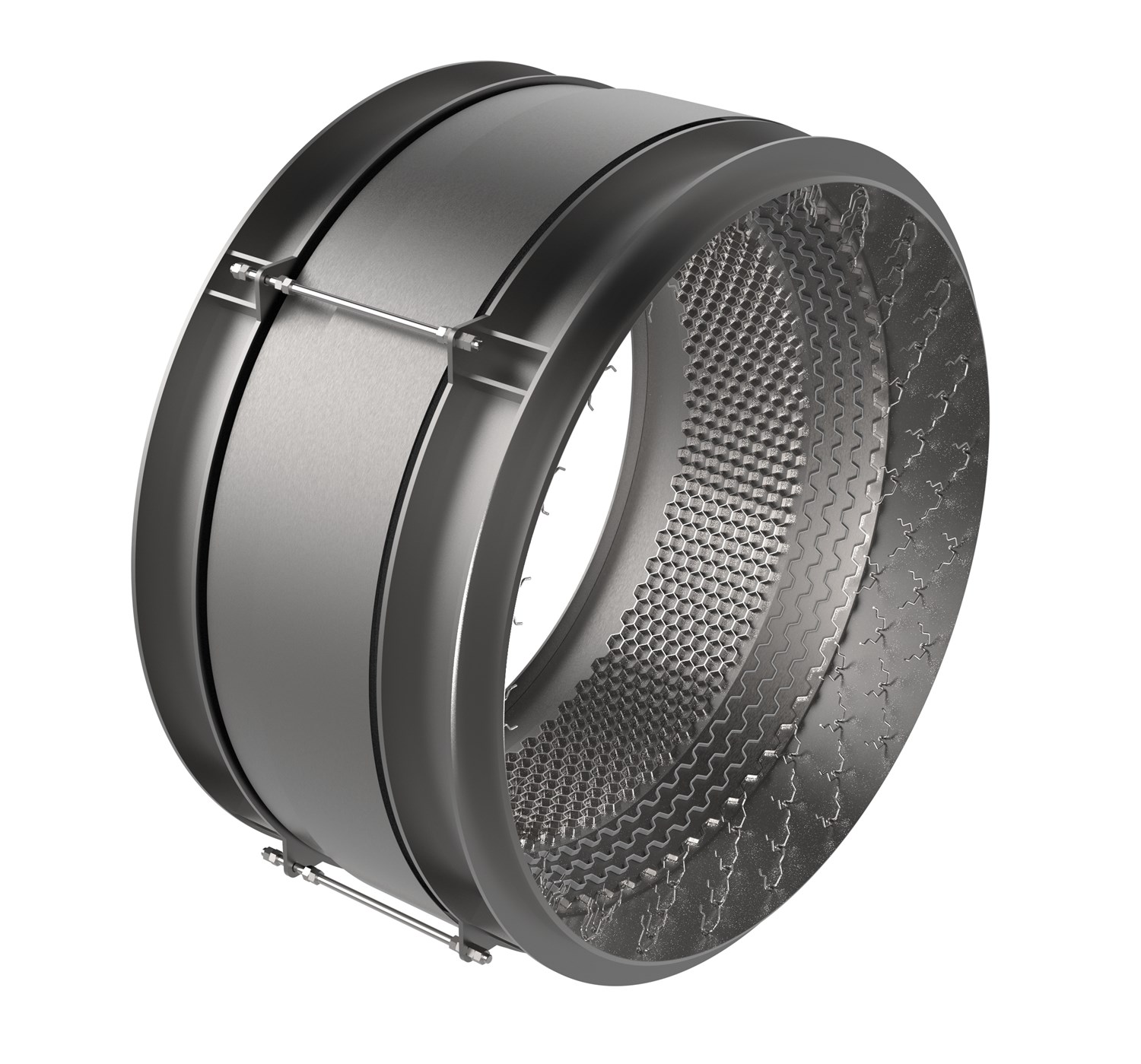

LBH Special Designs

AXIAL

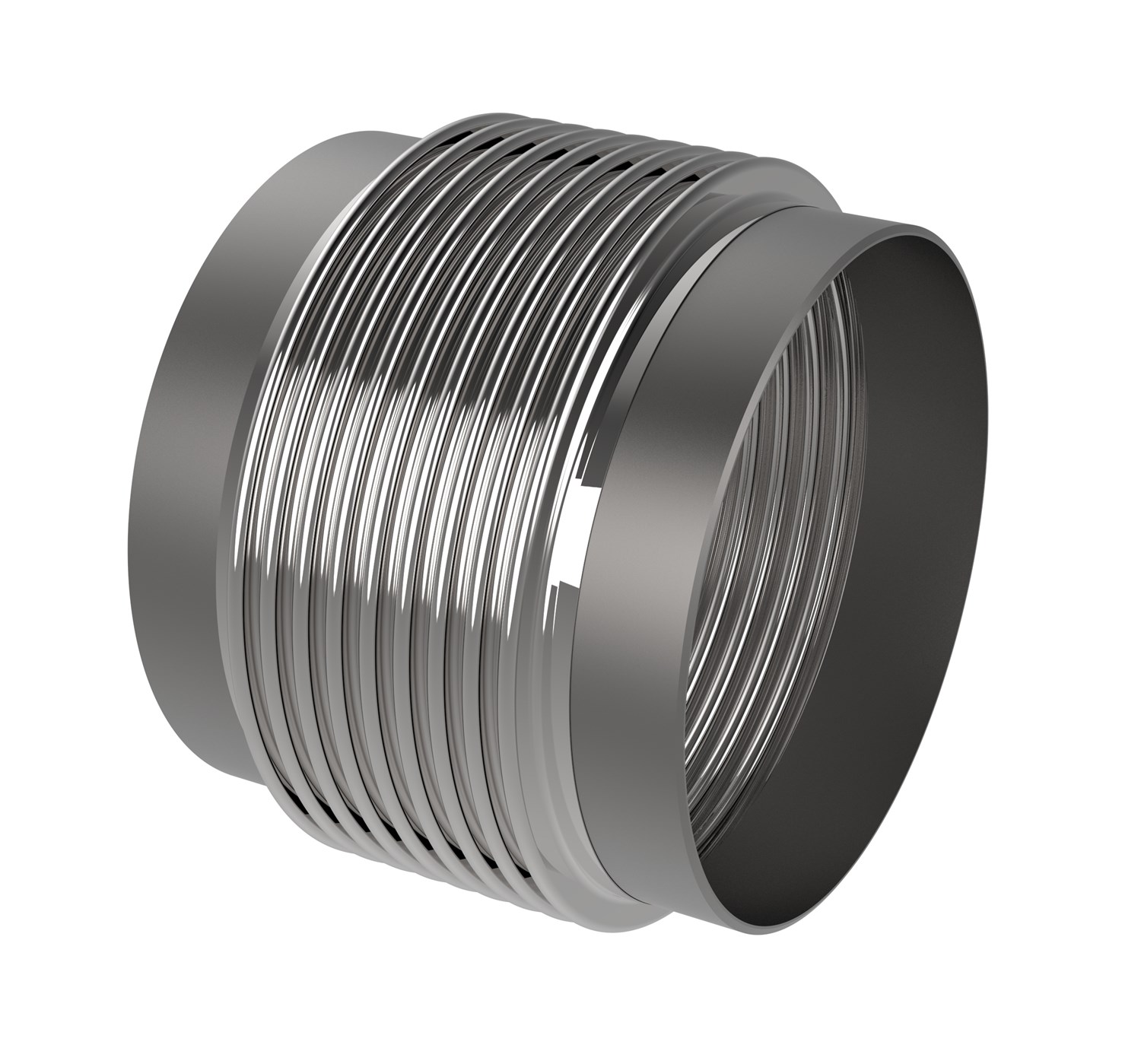

Axial expansion joints for obtaining axial movements.

Limited capacity of lateral and angular movements.

Un-restrained (Do NOT restrain pressure thrust)

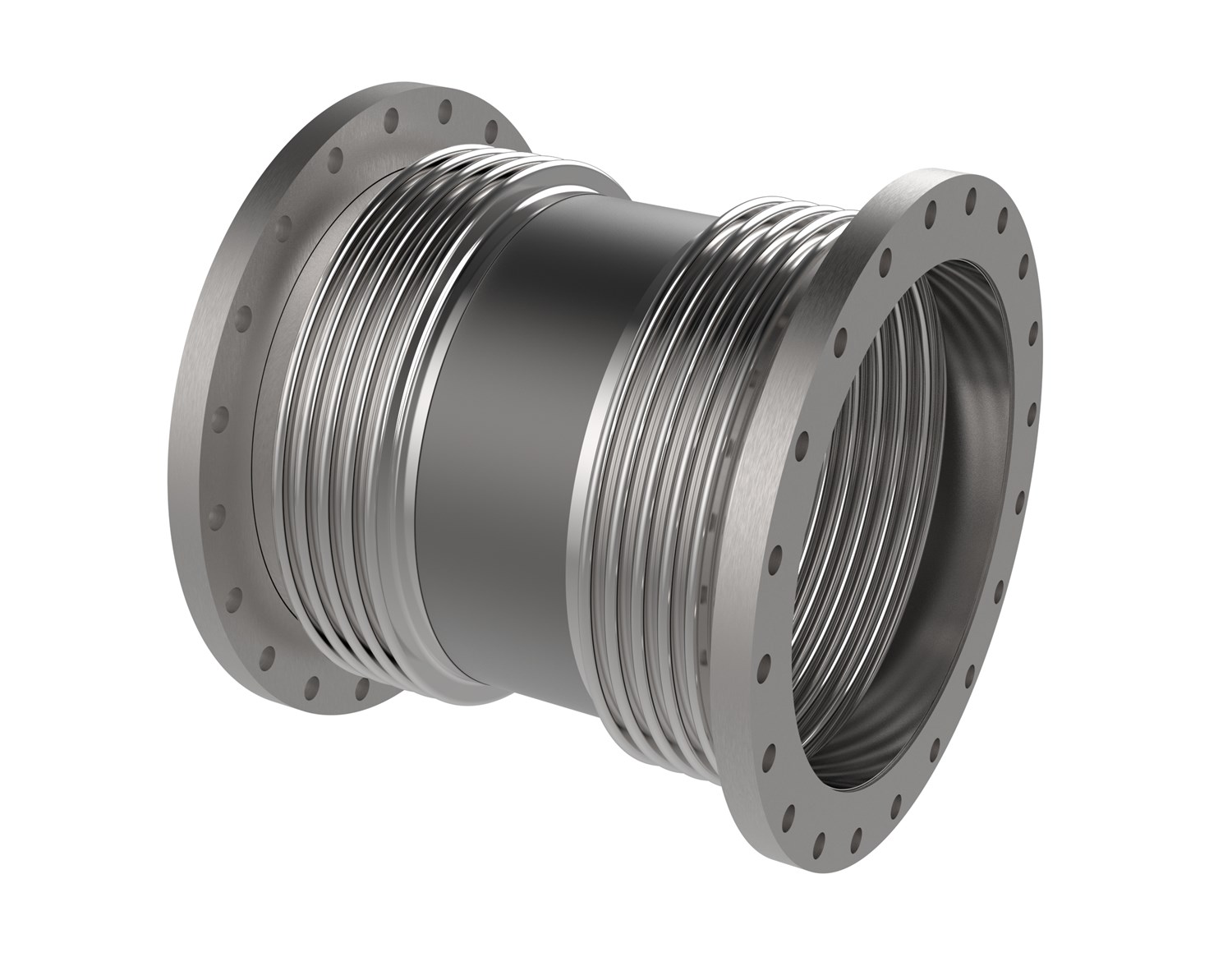

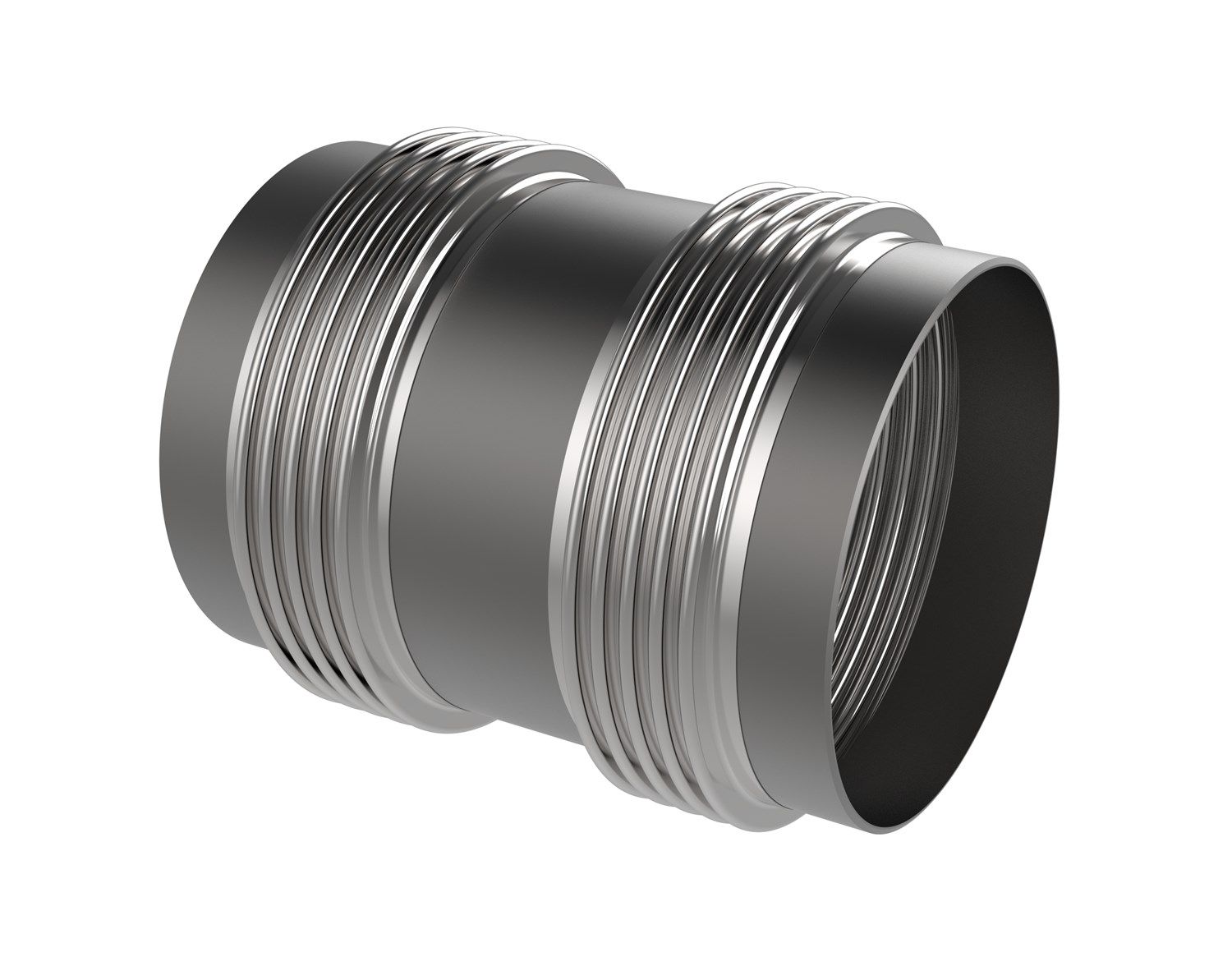

Universal expansion joints for obtaining axial-, lateral- and angular movements.

Un-restrained (Do NOT restrain pressure thrust)

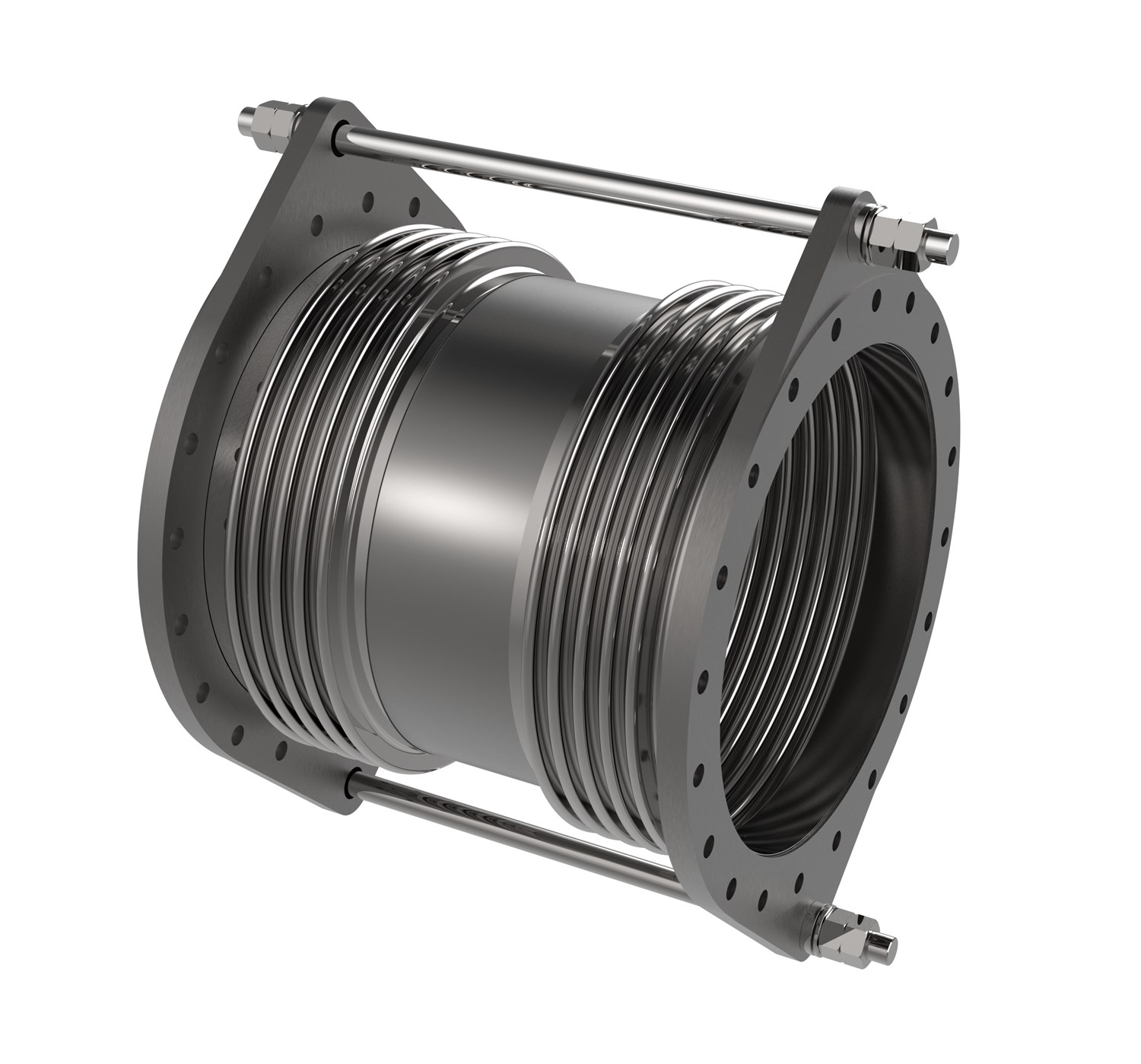

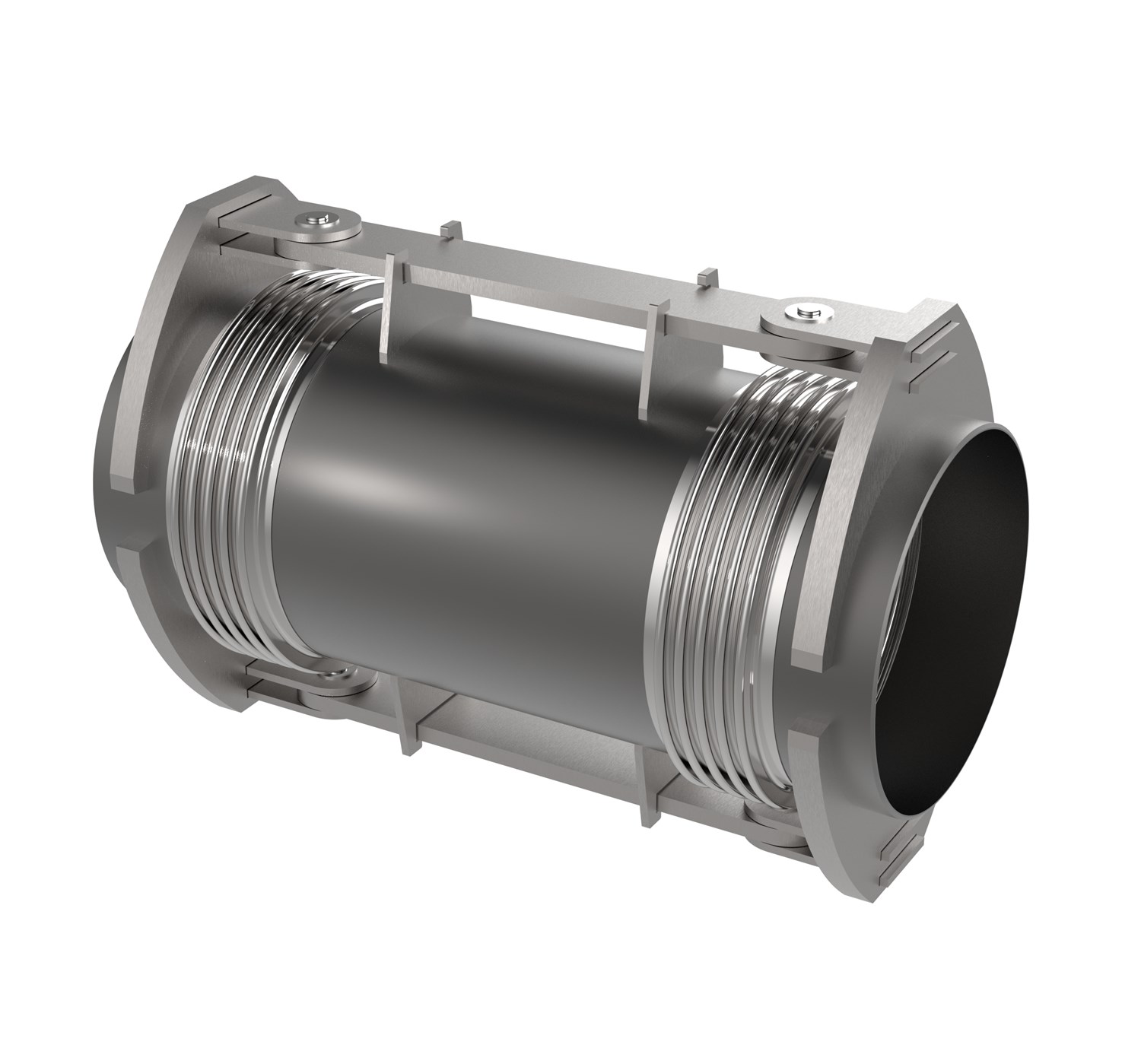

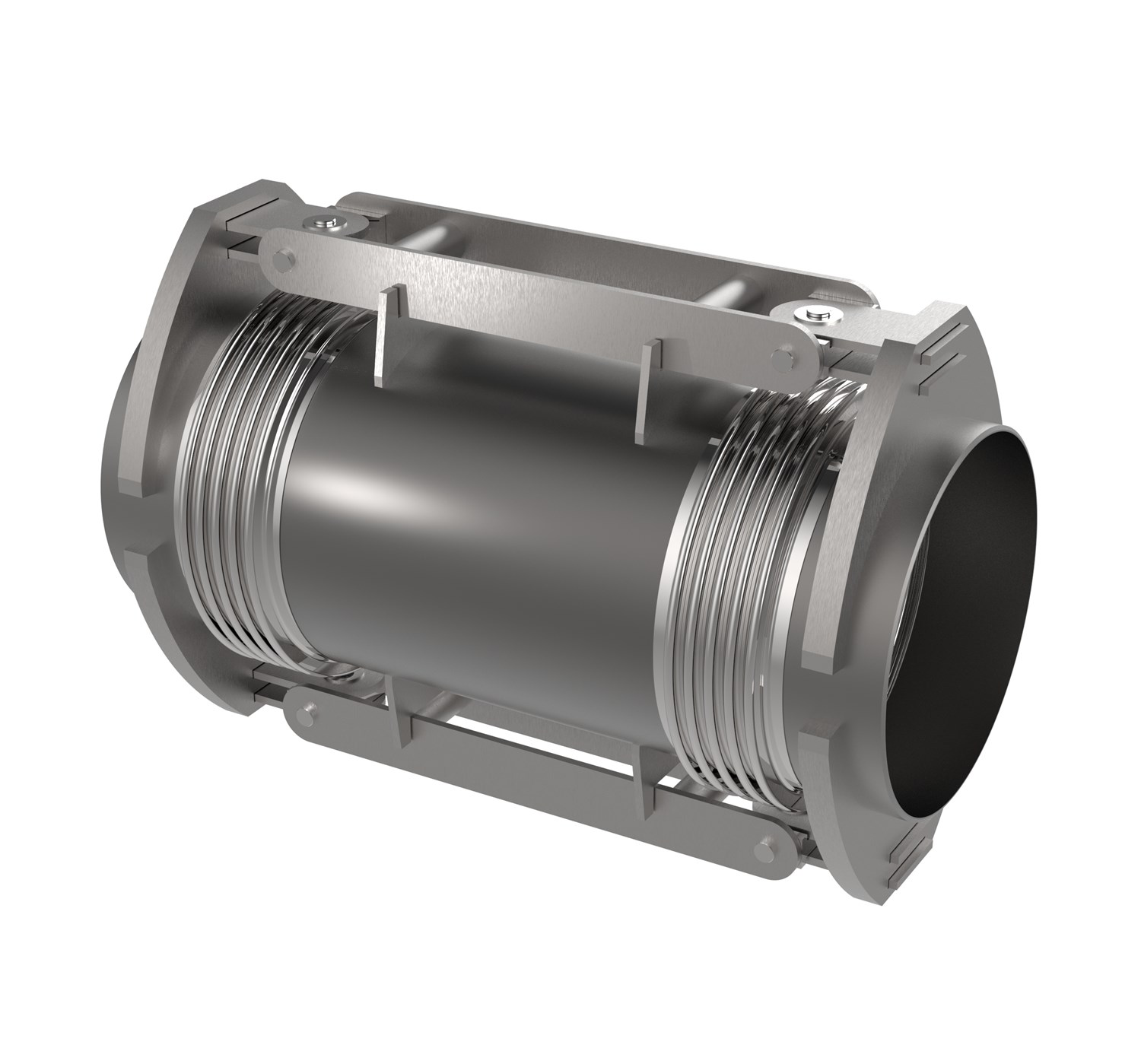

Lateral expansion joints for obtaining lateral movements.

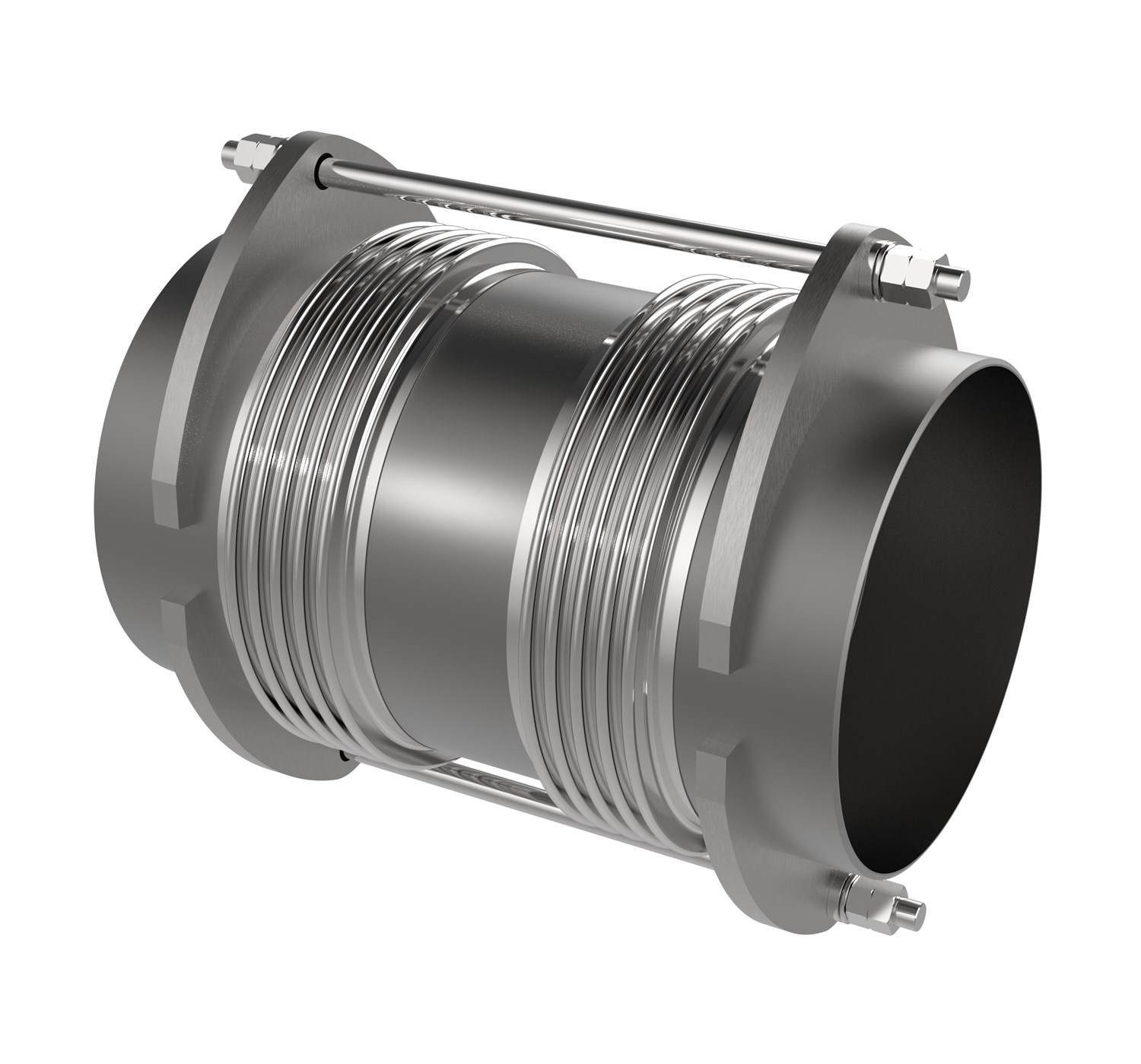

Deflection in one plane with rods or single hinge designs.

Deflections in all planes with rods or cardan designs.

No axial movements allowed.

Restrained (Restrain pressure thrust)

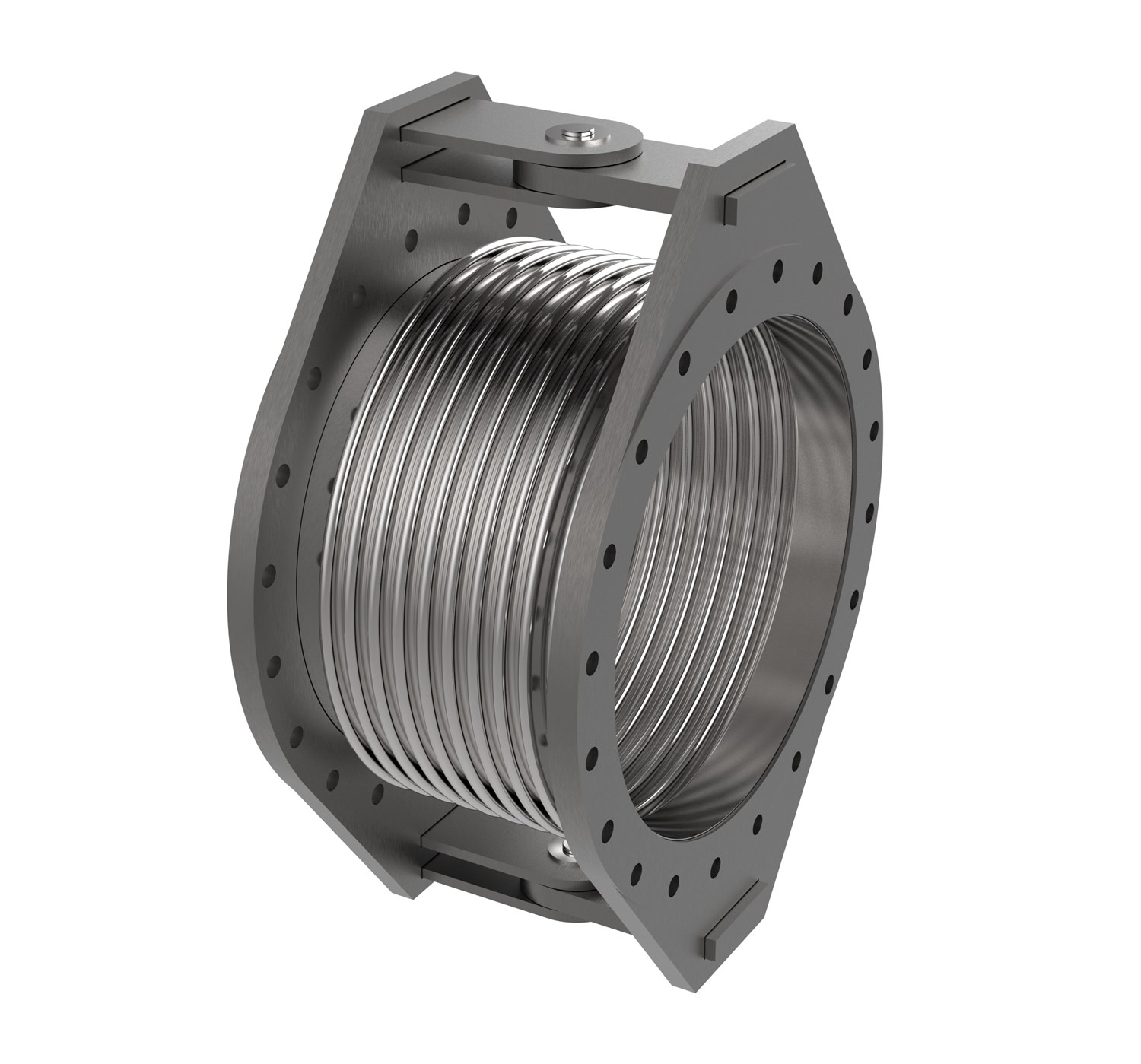

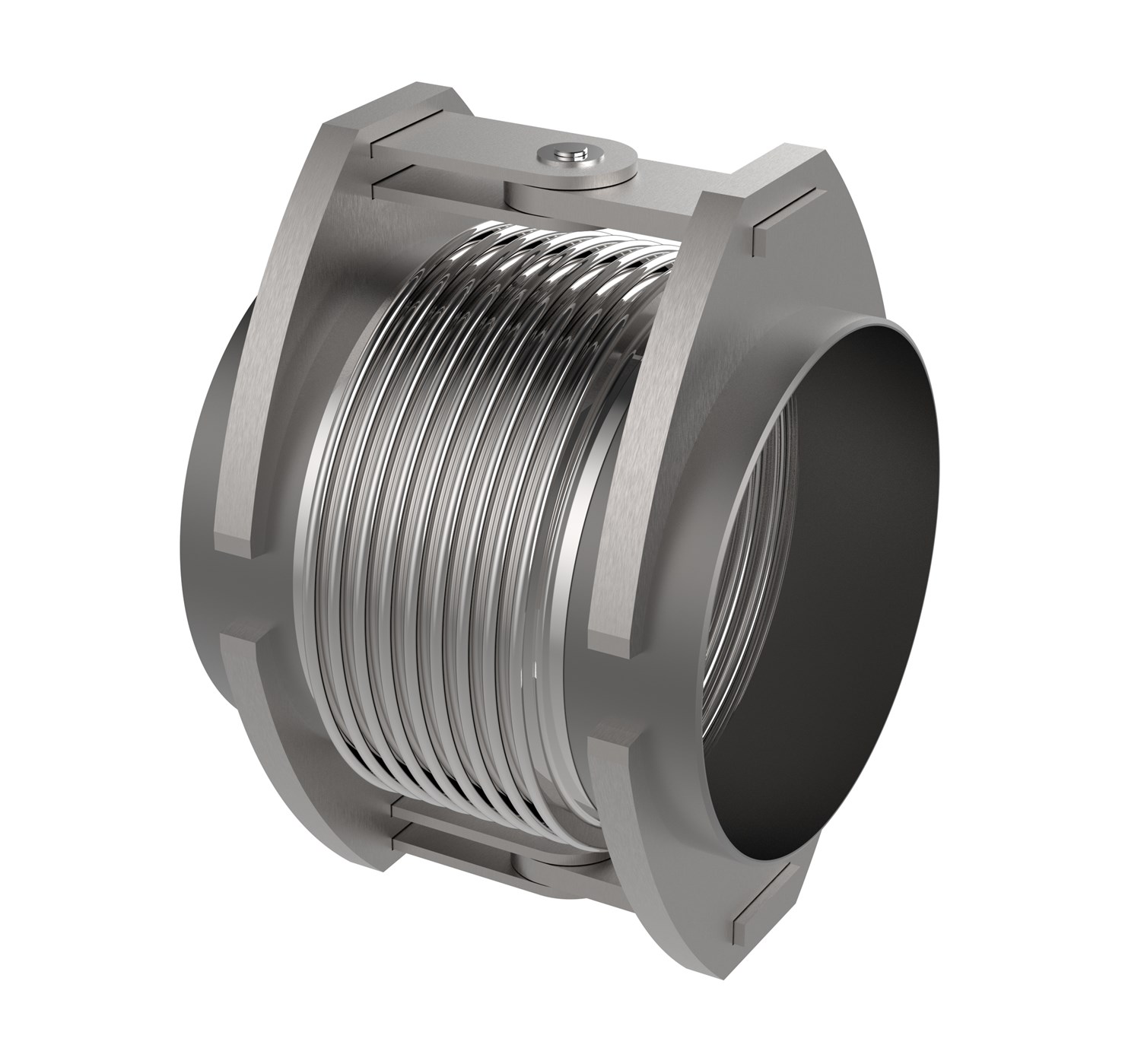

Angular expansion joints for obtaining angular movements.

Angular rotation in one plane with single hinge designs.

Angular rotation in all planes with cardan designs.

No axial movements allowed.

Restrained (Restrain pressure thrust)

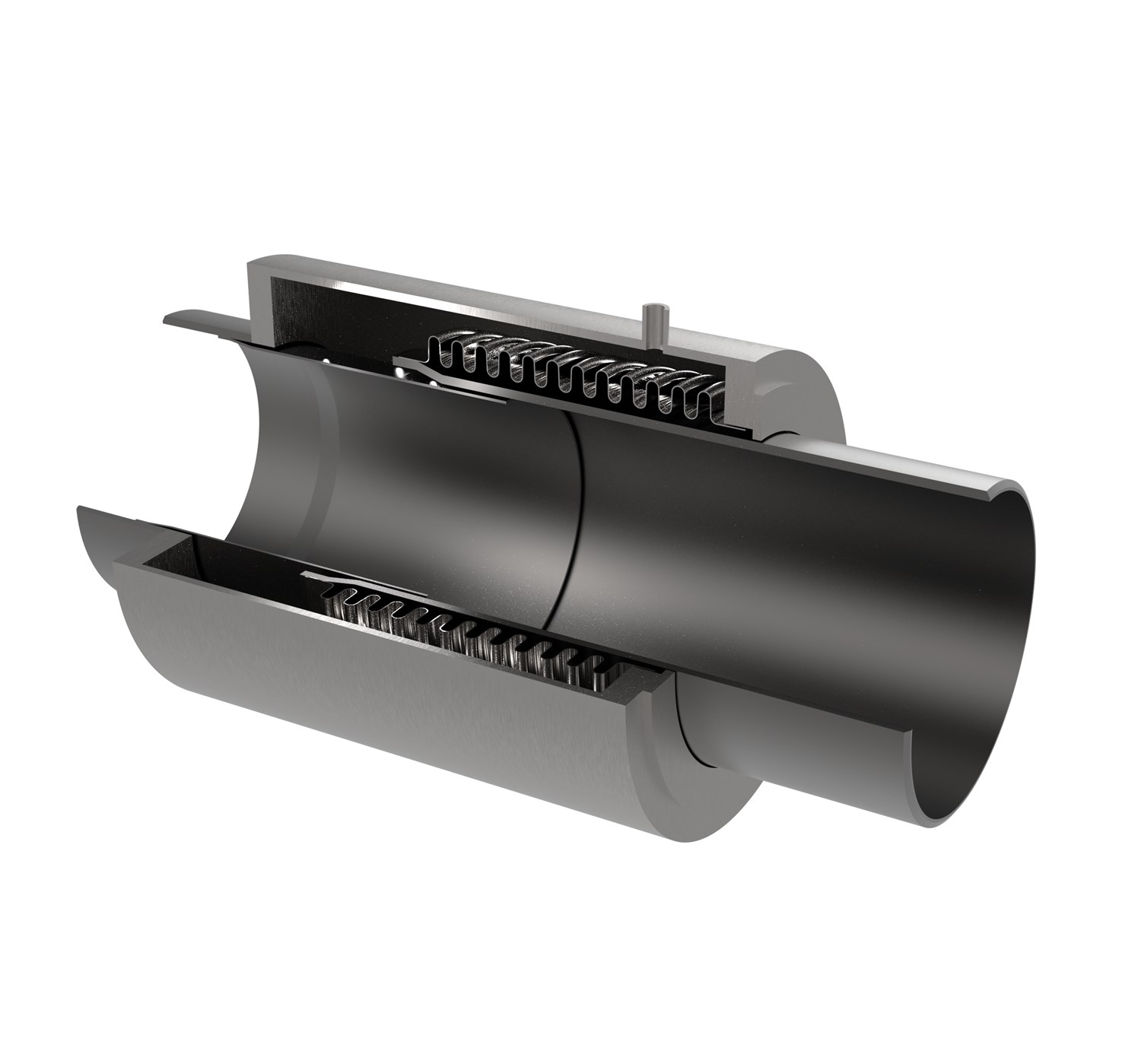

External Pressurized expansion joints for obtaining large axial movements.

No lateral- or angular movements allowed.

Un-restrained (Do NOT restrain pressure thrust)

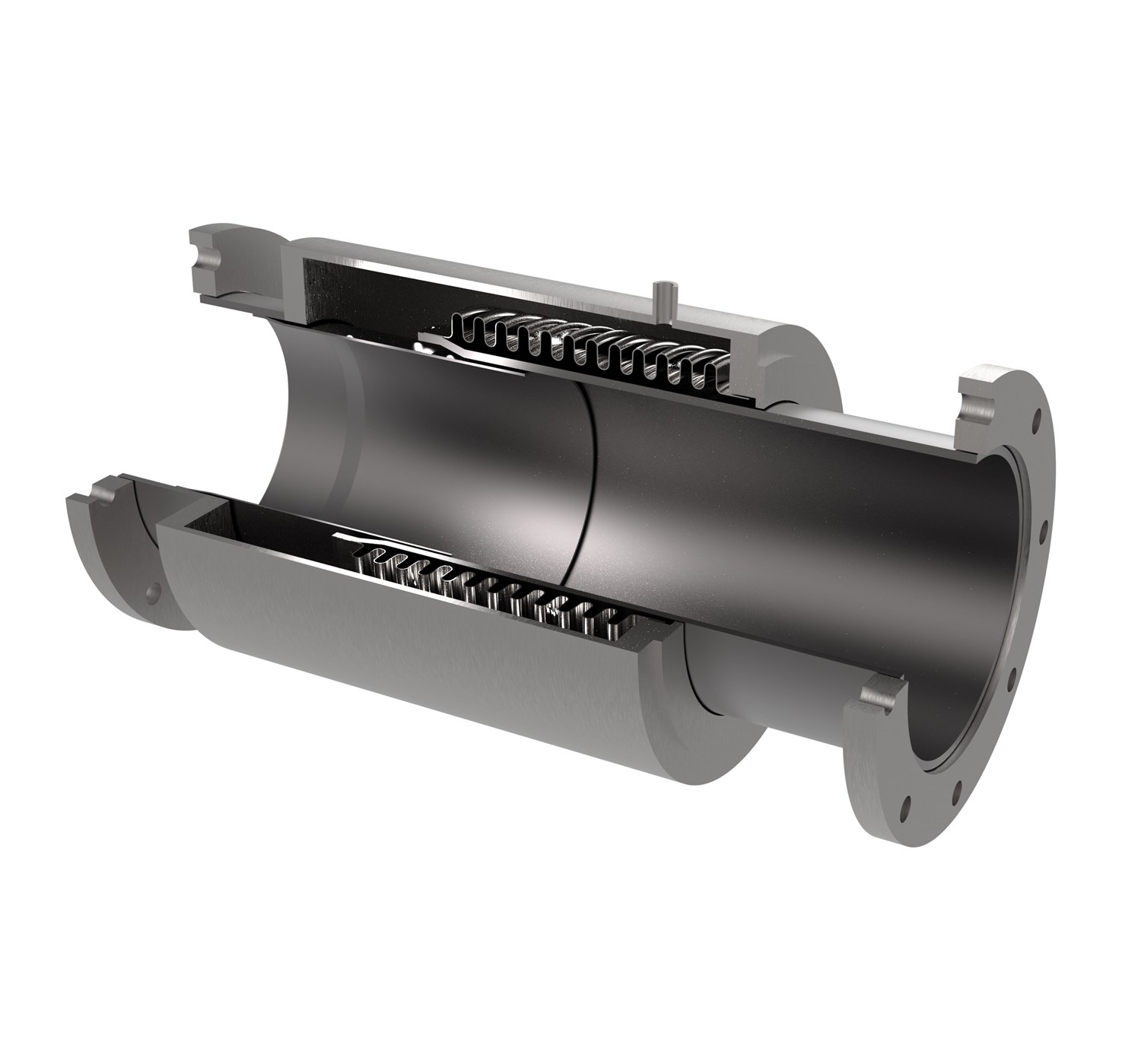

External Pressurized Raise with flanges

External Pressurized Raise with flanges
External Pressurized Raise with weld ends

External Pressurized Raise with weld ends

In-line Pressure balanced expansion joints for obtaining mainly axial movements.

Limited capacity of lateral- and angular movements depending on design.

Pressure thrusts are balanced or restrained.

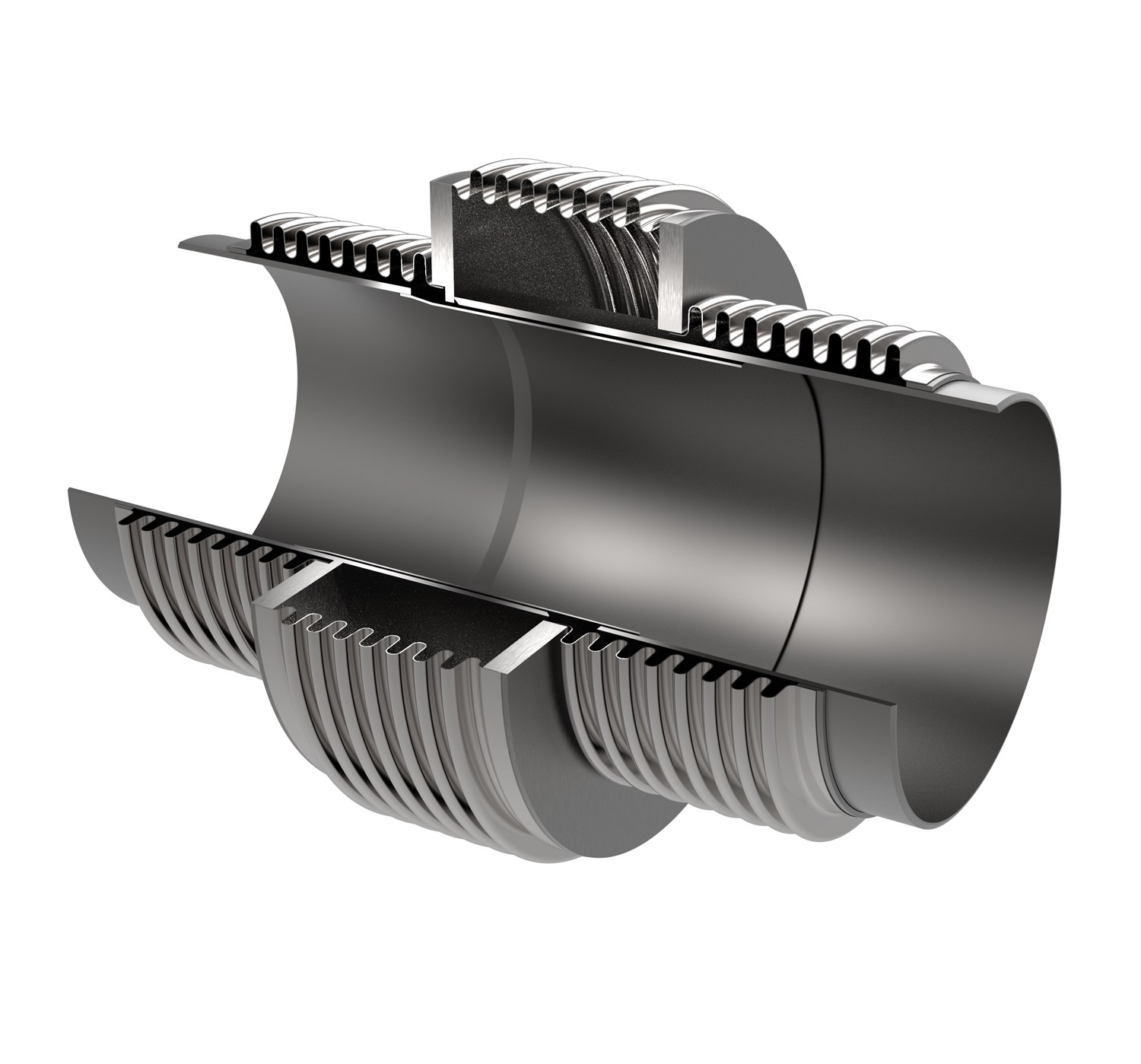

In-line Pressure Balanced

In-line Pressure Balanced

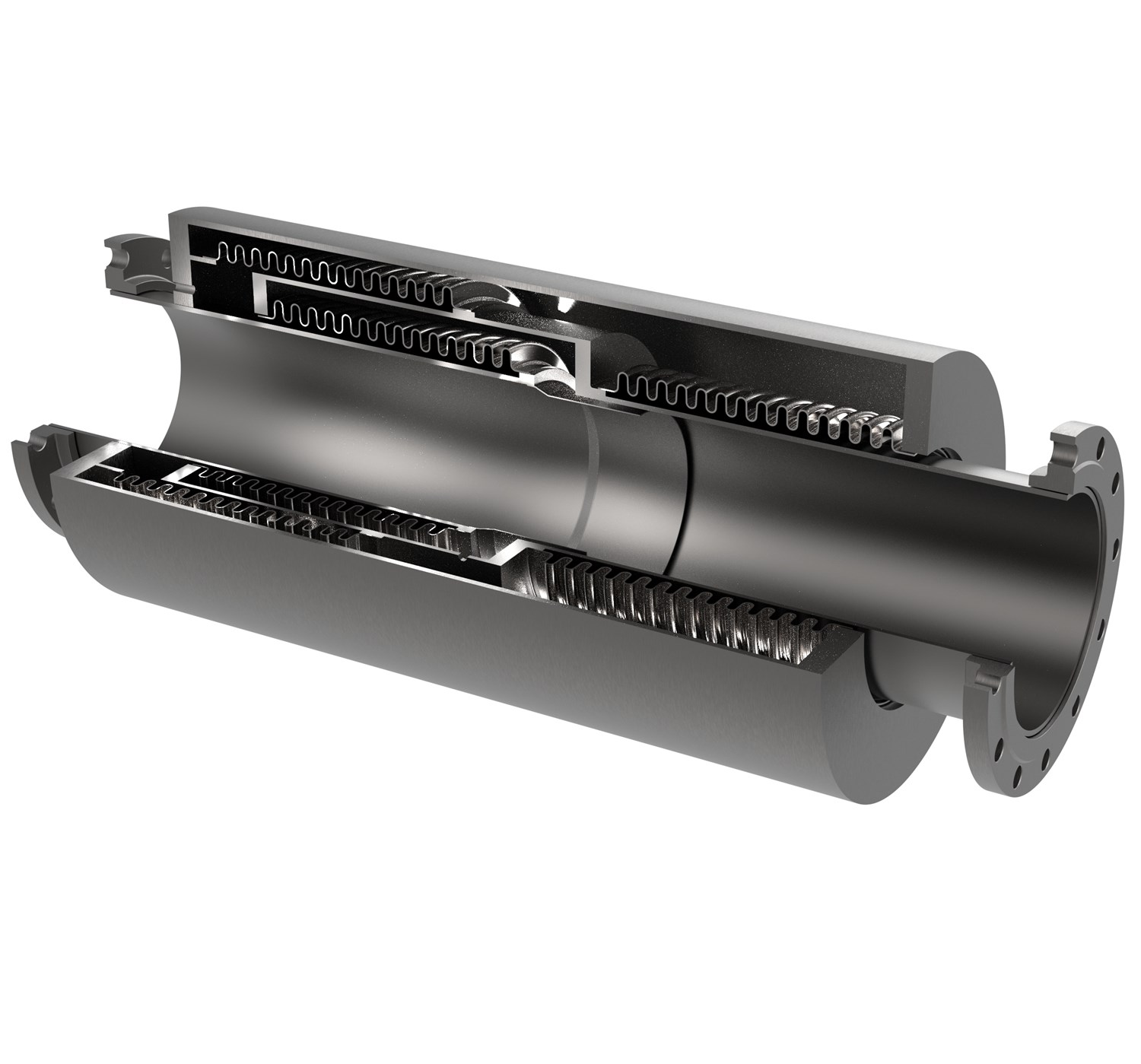

In-line Externally Pressurized Pressure Balanced

In-line Externally Pressurized Pressure Balanced

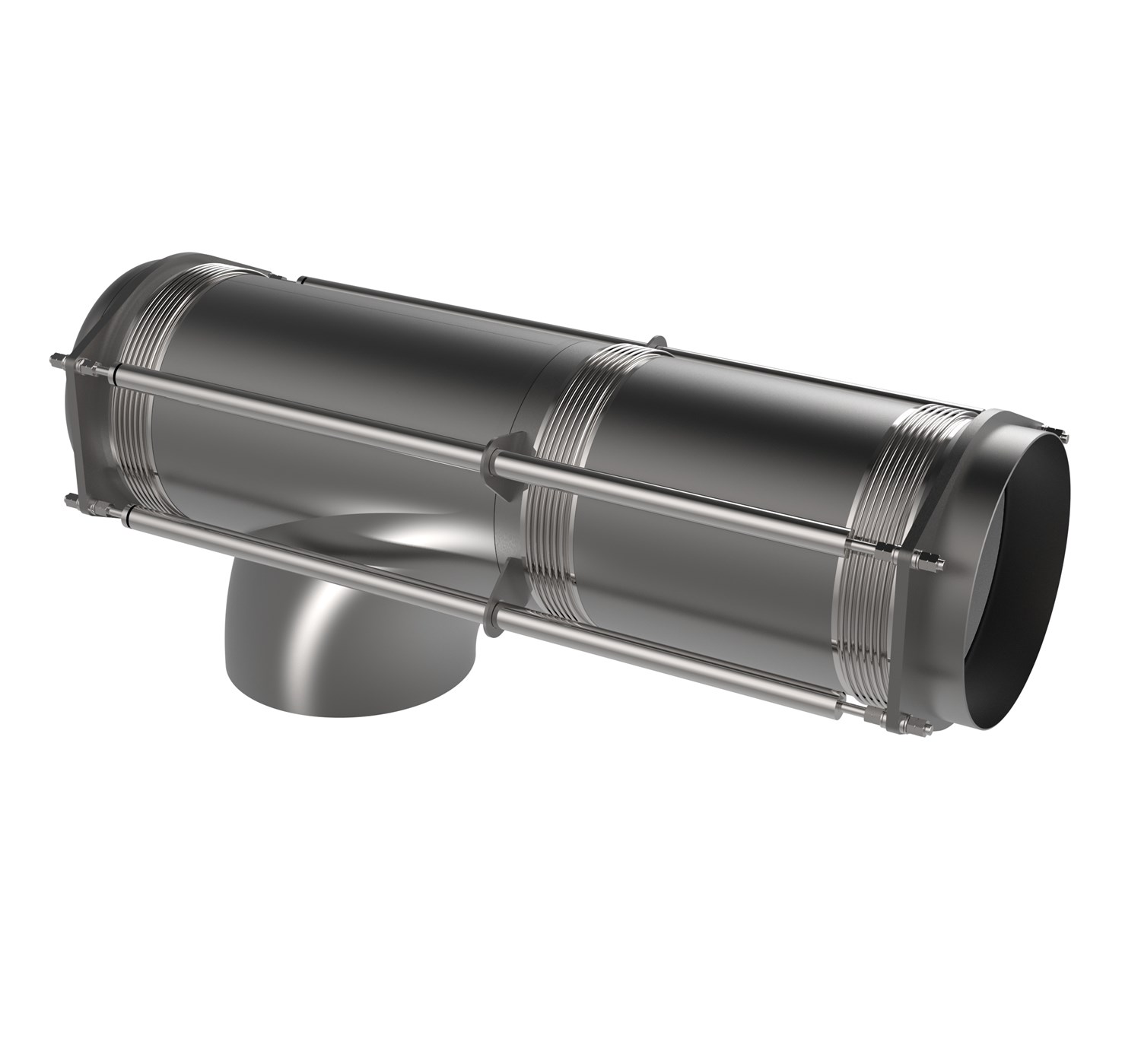

Pressure Balanced with elbow

Pressure Balanced with elbow
